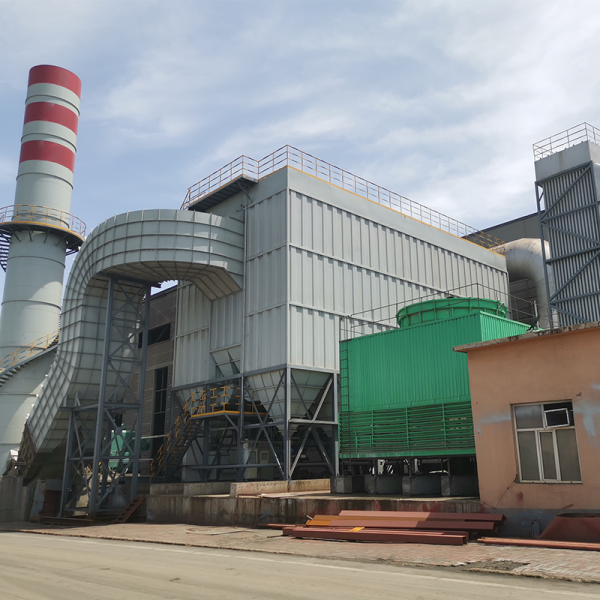

Non Ferrous Metallurgical Bag Filter

Non Ferrous Metallurgical Bag Filter

Non Ferrous Metallurgical Bag Filter
Non Ferrous Metallurgical Bag FilterNon Ferrous Metallurgical Bag FilterNon Ferrous Metallurgical Bag FilterNon Ferrous Metallurgical Bag FilterNon Ferrous Metallurgical Bag FilterNon Ferrous Metallurgical Bag Filter
CategoriesIndustrial Baghouse Dust Collector
BrandChity
ModelCBD-I
Warranty1 years
Efficiency99.6%
Filter Area4.8-192㎡
Processing air volume230-9216m ³/ H
Number of pulse valves3-24unit
FOB portChina
Update TimeDec 6,2024
Detail Information
Products Description
The baghouse dust collector is a filter-type dust removal equipment based on the principle of filtration, which uses the fiber or inorganic fiber filter cloth of the agricultural production system to filter out the dust in the gas. Dust removal process: the dust-containing gas enters the middle box from the air inlet, enters the bag from the outside of the filter bag, the dust is blocked on the surface outside the filter bag, the purified air enters the bag, and then enters the upper box from the upper part of the bag, and then is discharged by the exhaust pipe.
Product Parameters
Specification and performance of bag filter
Model
Filter area/㎡
Processing air volume m ³/ H
Number of pulse valves/unit
Fan model
Fan power/kw
Processing efficiency%
Resistance/Pa
CBD-I-24-100
9.6
518
4
4-68 2.8A
0.75
99.9%
400
CBD-I-36-100
14.4
778
6
4-68 2.8A
1.1
99.9%
400
CBD-I-48-100
19.2
1037
6
4-68 2.8A
1.5
99.9%
400
CBD-I-64-100
25.6
1382
8
4-68 2.8A
2.2
99.9%
400
CBD-I-80-100
32
1728
8
4-68 3.2A
3
99.9%
400
CBD-I-100-100
40
2160
10
4-68 3.6A
3
99.9%
400
CBD-I-80-150
48
2592
10
4-68 3.6A
4
99.9%
500
CBD-I-100-150
60
3240
10
4-68 3.6A
4
99.9%
500
CBD-I-120-150
72
3800
12
4-68 4A
5.5
99.9%
500
CBD-I-150-150
90
4860
15
4-68 4A
5.5
99.9%
500
CBD-I-180-150
108
5832
18
4-68 4.5A
7.5
99.9%
500
CBD-I-200-150
120
6480
20
4-68 4.5A
7.5
99.9%
500
CBD-I-240-150
144
7776
24
4-68 4.5A
7.5
99.9%
500
CBD-I-260-150
156
8424
26
4-72 4.5A
11
99.9%
500
CBD-I-300-150
180
9720
30
4-72 5A
11
99.9%
500
CBD-I-260-200
208
11232
26
4-72 5A
11
99.9%
600
CBD-I-300-200
240
12960
30
4-72 5A
15
99.9%
600
CBD-I-320-200
256
13824
32
4-72 5A
15
99.9%
600
application area
