Filter Dust with Chity

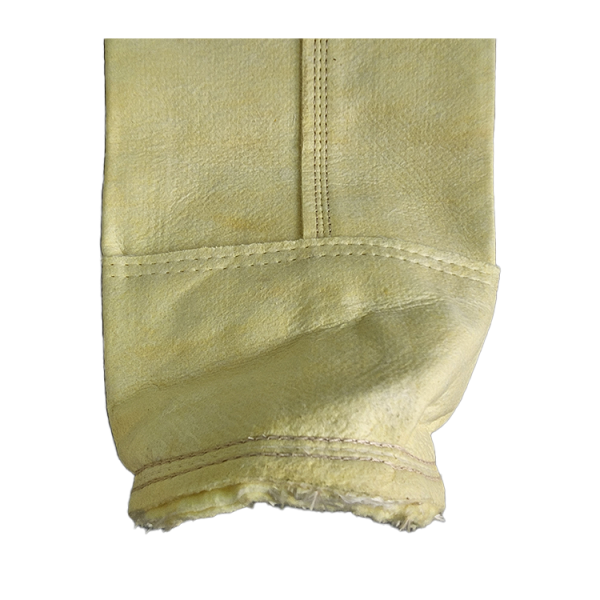

Nonwoven Fiberglass Filter Bag
| Categories | Filter Bag & Filter Cartridge |
|---|---|
| Brand | Chity |
| Material | 100% Fiberglass |
| Weight | 850 gsm |
| Continous Temperature | 240 |
| Peak Temperature | 260 |
| FOB port | China |
| Update Time | Apr 4,2025 |
Detail Information
Introduction
Key Features
>High-Temperature Resistance – Can withstand continuous temperatures up to 260°C (500°F), with short-term exposure up to 300°C (572°F).
>Excellent Chemical Resistance – Resists acids, alkalis, and oxidation, making it suitable for corrosive gas filtration.
>Low Thermal Shrinkage – Maintains dimensional stability under high temperatures.
>High Filtration Efficiency – Captures fine dust particles while maintaining good airflow.
>Good Mechanical Strength – Reinforced with PTFE or other coatings to enhance abrasion resistance and durability.
>Long Service Life – With proper coatings and treatment, fiberglass filter bags can last longer than synthetic fiber filter bags.
>Customizable Surface Treatments – Available with PTFE membranes, acid-resistant coatings, or graphite coatings to enhance performance in specific environments.
Technical Specification | ||
| Name/Quality | Fiberglass | |
| Component | Shell Fiber | Fiberglass |
| Scrim | Fiberglass | |
| Weight | 850 gsm±5% | |
Thickness | 2.5±0.2mm | |
Tensile Strenth N/5*20cm | Lenghth | ≥1800 |
Cross | ≥1800 | |
Elongation at Break/% | Lenghth | ≤10 |
Cross | ≤10 | |
Temperature/℃ | Continue | 240 |
Peaks | 260 | |
Finish | Heat Stabilization, Glaze, Singe | |
Applilcation
>Cement & Lime Industry – Captures kiln dust and clinker dust.
>Coal-Fired Power Plants – Filters fly ash and flue gas emissions.
>Steel & Metal Processing – Controls dust and fumes from smelting and metal refining.
>Waste Incineration Plants – Handles high-temperature, corrosive gases.
>Chemical & Petrochemical Plants – Filters gas streams containing acids, hydrocarbons, and solvents.
Physical Characteristics of Filter Bag Material
| Material | Weight/gsm | Thickness/mm | Continuous Temperature | Peak Temperature |
| Polyester | 550 | 2.0±0.15 | 130 | 150 |
| Polypropylene | 550 | 2.0±0.15 | 80 | 100 |
| Fiberglass | 850 | 2.5±0.2 | 240 | 260 |
Acrylic | 550 | 2.0±0.15 | 130 | 150 |
Nomex | 550 | 2.0±0.15 | 190 | 210 |
PPS | 550 | 2.0±0.15 | 160 | 190 |
PTFE | 800 | 1.2±0.15 | 240 | 260 |
P84 | 550 | 2.0±0.15 | 260 | 280 |
Chemical Characteristics of Filter Bag Material
| Material | Hydrolysis Resistance | Acid Resistance | Alkali Resistance | Oxidation |
| Polyester | Poor | Moderate | Poor | Good |
| Polypropylene | Excellent | Excellent | Excellent | Poor |
| Fiberglass | Good | Good | Poor | Excellent |
Acrylic | Excellent | Excellent | Excellent | Poor |
Nomex | Moderate | Moderate | Moderate | Good |
PPS | Excellent | Excellent | Excellent | Moderate |
PTFE | Excellent | Excellent | Excellent | Excellent |
P84 | Good | Good | Moderate | Good |
