Filter Dust with Chity

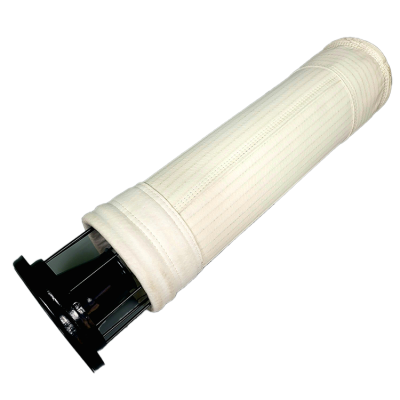

Acrylic Dust Filter Bag
| Categories | Filter Bag & Filter Cartridge |
|---|---|
| Brand | Chity |
| Material | Polyacrylonitrile |
| Weight | 550 gsm |
| Continous Temperature | 130 |
| Peak Temperature | 150 |
| FOB port | China |
| Update Time | Apr 4,2025 |
Detail Information
Introduction
Key Features
>Moderate Temperature Resistance – Can withstand continuous temperatures up to 125°C (257°F), with peak resistance up to 140°C (284°F).
>Good Chemical Resistance – Resistant to mild acids and alkalis, making it suitable for industrial gas filtration.
>Excellent Hydrolysis Resistance – Performs well in high-humidity environments, unlike Nomex® or polyester filter bags.
>High Filtration Efficiency – Provides effective dust capture while maintaining airflow.
>Good Mechanical Strength – Durable against wear and tear, extending service life.
>Cost-Effective Option – More affordable than PTFE, Nomex®, and P84 filter bags.
>Surface Treatments Available – PTFE membrane, water & oil repellent, and anti-static coatings can be applied for enhanced performance.
Technical Specification | ||
| Name/Quality | Acrylic | |
| Component | Shell Fiber | Polyacrylonitrile |
| Scrim | Polyacrylonitrile | |
| Weight | 550 gsm | |
Thickness | 2.0±0.15mm | |
Tensile Strenth N/5*20cm | Lenghth | ≥700 |
Cross | ≥800 | |
Elongation at Break/% | Lenghth | ≤30 |
Cross | ≤50 | |
Temperature/℃ | Continue | 130 |
Peaks | 150 | |
Finish | Heat Stabilization, Glaze, Singe | |
Applilcation
>Asphalt Mixing Plants – Resistant to the moisture and acidic gases in asphalt production.
>Waste Incineration Plants – Suitable for filtering acidic and moisture-laden flue gases.
>Coal-Fired & Biomass Power Plants – Handles flue gas filtration under moderate temperatures.
>Chemical & Petrochemical Industry – Resists corrosion from industrial gas emissions.
>Food & Pharmaceutical Industry – Safe for dust collection in moisture-sensitive production environments.
Physical Characteristics of Filter Bag Material
| Material | Weight/gsm | Thickness/mm | Continuous Temperature | Peak Temperature |
| Polyester | 550 | 2.0±0.15 | 130 | 150 |
| Polypropylene | 550 | 2.0±0.15 | 80 | 100 |
| Fiberglass | 850 | 2.5±0.2 | 240 | 260 |
Acrylic | 550 | 2.0±0.15 | 130 | 150 |
Nomex | 550 | 2.0±0.15 | 190 | 210 |
PPS | 550 | 2.0±0.15 | 160 | 190 |
PTFE | 800 | 1.2±0.15 | 240 | 260 |
P84 | 550 | 2.0±0.15 | 260 | 280 |
Chemical Characteristics of Filter Bag Material
| Material | Hydrolysis Resistance | Acid Resistance | Alkali Resistance | Oxidation |
| Polyester | Poor | Moderate | Poor | Good |
| Polypropylene | Excellent | Excellent | Excellent | Poor |
| Fiberglass | Good | Good | Poor | Excellent |
Acrylic | Excellent | Excellent | Excellent | Poor |
Nomex | Moderate | Moderate | Moderate | Good |
PPS | Excellent | Excellent | Excellent | Moderate |
PTFE | Excellent | Excellent | Excellent | Excellent |
P84 | Good | Good | Moderate | Good |
