Filter Dust with Chity

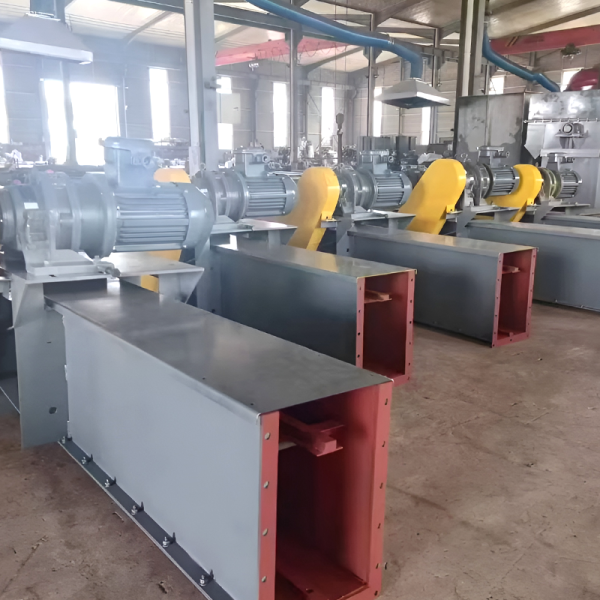

Bulk Handing Scrapper Chain Conveyor Equipment for Dust Collector
| Categories | Conveyor Equipment |
|---|---|
| Brand | Chity |
| Update Time | Apr 4,2025 |
Detail Information
Description
A scraper conveyor is an essential material handling system in a dust collector, designed for efficient dust, ash, and fine particle transportation. It uses a series of scraper blades attached to a moving chain or belt to push collected dust along an enclosed trough. This dust collector scraper conveyor ensures continuous, controlled discharge, reducing manual handling and system clogging. Built from wear-resistant materials, it withstands abrasive and high-temperature environments, making it ideal for woodworking, metalworking, and industrial filtration systems. By integrating a scraper conveyor with a dust collector, facilities can enhance dust removal efficiency, maintain cleaner operations, and improve air quality.
Key Components
>Trough (Casing) – An enclosed or open channel that guides and contains the transported dust or material.
>Scraper Blades – Attached to the chain or belt, these blades push dust and fine particles along the trough.
>Conveyor Chain or Belt – Moves the scraper blades through the trough to transport material.
>Drive System – Includes an electric motor, gearbox, and sprockets to provide motion to the chain or belt.
>Sprockets & Shafts – Guide and support the conveyor chain, ensuring smooth movement.
>Bearings – Support rotating shafts and reduce friction for efficient operation.
>Inlet & Outlet Openings – Control the entry and discharge of collected dust from the dust collector.
>Tensioning System – Maintains proper chain or belt tension to ensure efficient material movement.
>Wear Liners (Optional) – Protective liners inside the trough to minimize wear from abrasive materials.
>Inspection & Maintenance Ports – Provide access for cleaning, adjustments, and repairs.
