Filter Dust with Chity

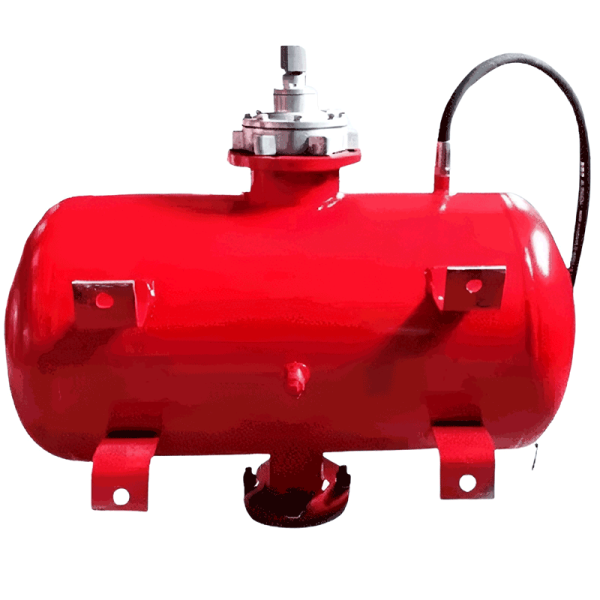

Industrial Air Cannon Air Blaster Cannon
| Categories | Dust Collector Accessories |
|---|---|
| Brand | Chity |
| Model | Chity Air Cannon |
| Update Time | Apr 28,2025 |
Detail Information
Introduction
Description
A pneumatic industrial device engineered to prevent and resolve material bridging, silo clogging, cohesion-induced adhesion, and flow stagnation in bulk storage systems. It applies supersonic compressed-air shockwaves (≥1 Mach) to disintegrate blockages within steel, concrete, or composite structures, including silos, hoppers, pipelines, and flat-bottomed stockpiles.
Key Features
>High-Pressure Burst Release
– Rapid discharge (0.1–0.5 sec) of compressed air (4–10 bar) to dislodge stubborn material buildup.
>Rugged Stainless Steel Construction – 304/316 SS body resists abrasion, corrosion, and high temps (up to 300°C/572°F).
>Zero Moving Parts – Low-maintenance design with diaphragm valve for reliable, leak-free operation.
>ATEX/IECEx Compliance – Explosion-proof models for combustible dust (Zone 20/21/22) with anti-static coatings.
>Programmable Control – Adjustable timing (1–60 min intervals) via PLC for automated cleaning cycles.
>Flange or Threaded Ports – ISO-standard connections (DN50–DN200) for seamless integration into silos, hoppers, or ductwork.
Limitations
>Material Adhesion Dependency – Less effective on highly cohesive, sticky, or moisture-laden dusts (e.g., wet cement, tarry residues).
>Compressed Air Reliance – Requires stable, dry air supply (4–10 bar); insufficient pressure reduces blast efficacy.
>Target Geometry Constraints – Limited effectiveness in narrow/angled ducts or areas with obstructed blast paths.
